Elevator & Lift

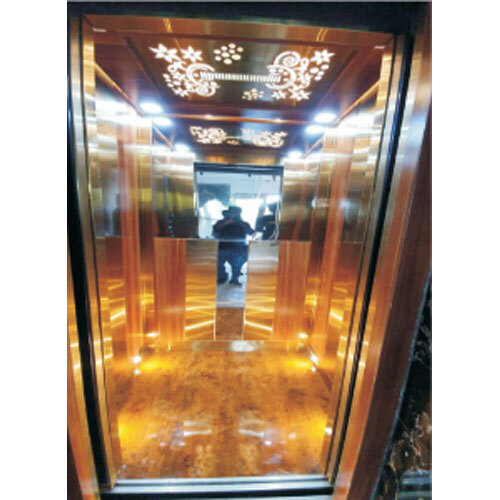

• Capacity
• 6-20 Persons (varies by model)

• Car Dimension
• 1100x1400 mm to 2000x1500 mm (customizable)

• Control Device
• Other, Microcomputer Control

• Door Opening Size
• 800x2100 mm, 900x2100 mm

• Drive Type
• Other, Gearless Traction / Hydraulic

• Hoist Way Size
• 1850x1550 mm to 2600x2100 mm

• Inclination
• 0 degree (Vertical)

• Load Capacity
• 450~1600 kg

• Machine Room Size
• 2100x3000 mm

• Material
• other Sheet, Stainless Steel Cabin, Tempered Glass (optional)

• Max. Lifting Height
• Up to 90 meters

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Electric Traction

• Noise Level
• < 50 dB

• Overhead Height
• 4200 mm approx.

• Pit Depth
• 1400 mm approx.

• Power Supply
• Three Phase

• Safety Device
• Other, Overload Sensor, Emergency Stop, Intercom, Buffer

• Speed
• 1.0~2.5 m/s

• Type
• Other, MRL (Machine Roomless), With Machine Room

• Usage
• Other, Passenger Transportation

• Voltage
• 380V / 220V

• Working Temperature
• -10C to +45C

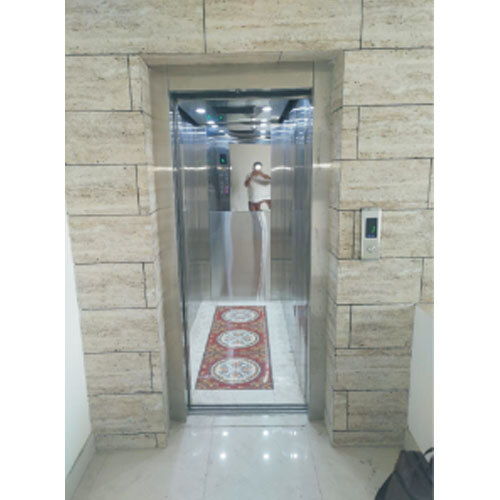

• Capacity
• 13 Persons / 1000 Kg

• Car Dimension
• 1400 mm x 2400 mm

• Control Device
• Other, Microprocessor Based Control Panel

• Door Opening Size
• 1100 mm x 2100 mm

• Drive Type
• Other, VVVF Drive

• Hoist Way Size
• 2100 mm x 2600 mm

• Inclination
• 0 (Vertical)

• Load Capacity
• 1000 Kg

• Machine Room Size
• 2400 mm x 2000 mm

• Material
• other Sheet, Stainless Steel Cabin, Mild Steel Frame

• Max. Lifting Height
• Up to 60 m

• Max. Lifting Weight
• 1000 Kg

• Mechanism Type
• Other, Traction & Hydraulic Options

• Noise Level
• 50 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1800 mm

• Power Supply
• Three Phase, 50 Hz

• Safety Device
• Other, Overload Sensor, Emergency Alarm, Automatic Rescue Device

• Speed
• 0.63 m/s - 1.6 m/s

• Type
• Other, Automated Hospital Lift

• Usage
• Other, Hospital, Medical Facility, Patient Transportation

• Voltage
• 380V / 415V

• Working Temperature
• 0C ~ 40C

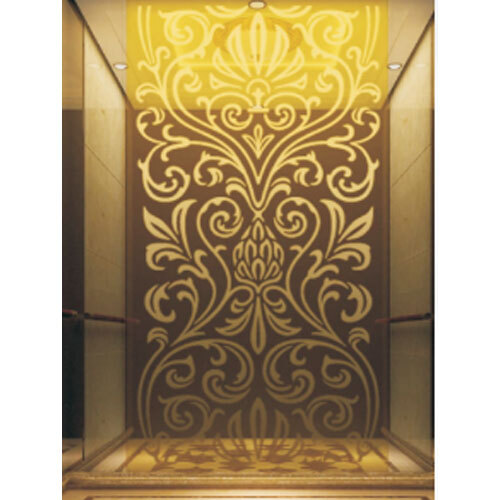

• Capacity
• 2-6 Persons

• Car Dimension
• 1100 x 1000 mm (W x D) (Customizable)

• Control Device
• Other, Microprocessor Controlled Panel

• Door Opening Size
• 700-800 mm

• Drive Type
• Other, Hydraulic or Traction

• Hoist Way Size
• 1500 x 1400 mm

• Inclination
• 0 (Vertical Travel)

• Load Capacity
• 200 kg - 500 kg

• Machine Room Size
• Not Required / Optional Compact Machine Room

• Material
• other Sheet, Stainless Steel Cabin with Glass Panel

• Max. Lifting Height
• 12 meters

• Max. Lifting Weight
• 500 kg

• Mechanism Type
• Other, Hydraulic/Traction

• Noise Level
• <50 dB

• Overhead Height
• 3000 mm

• Pit Depth
• 150 mm - 350 mm

• Power Supply
• Single Phase / Three Phase

• Safety Device
• Other, Emergency Stop, Overload Sensor, Backup Battery

• Speed
• 0.3-0.6 m/s

• Type
• Other, Passenger Lift/Home Lift

• Usage
• Other, Residential/Home

• Voltage
• 220-240V AC

• Working Temperature
• -5C to 40C

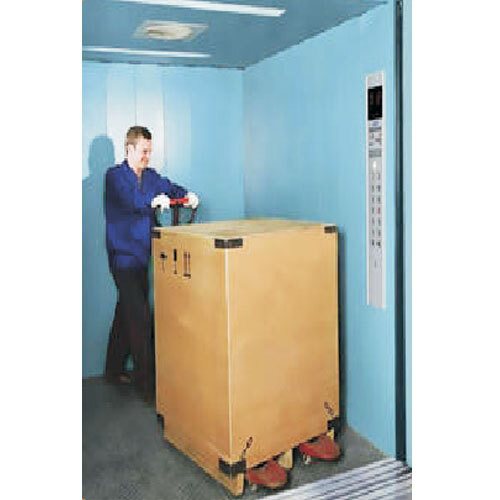

• Capacity
• 1000 kg

• Car Dimension
• 1500 mm x 1500 mm x 2000 mm (L x W x H)

• Control Device
• Other, Push Button / Call & Send Control

• Door Opening Size
• 1000 mm x 2000 mm

• Drive Type
• Other, Hydraulic / Electric

• Hoist Way Size
• 2000 mm x 2000 mm

• Inclination
• Vertical

• Load Capacity
• 1000 kg

• Machine Room Size
• Customized

• Material
• other Sheet, Mild Steel / Stainless Steel

• Max. Lifting Height
• Up to 20 meters

• Max. Lifting Weight
• 1000 kg

• Mechanism Type
• Other, Hydraulic / Traction

• Noise Level
• < 60 dB

• Overhead Height
• 2800 mm

• Pit Depth
• 500 mm

• Power Supply
• 3 Phase AC

• Safety Device
• Other, Overload Protection, Emergency Stop, Safety Interlock

• Speed
• 0.25 m/s

• Type
• Other, Industrial Goods Lift

• Usage
• Other, Industrial, Warehouse, Factory

• Voltage
• 415 V

• Working Temperature
• -10C to 60C

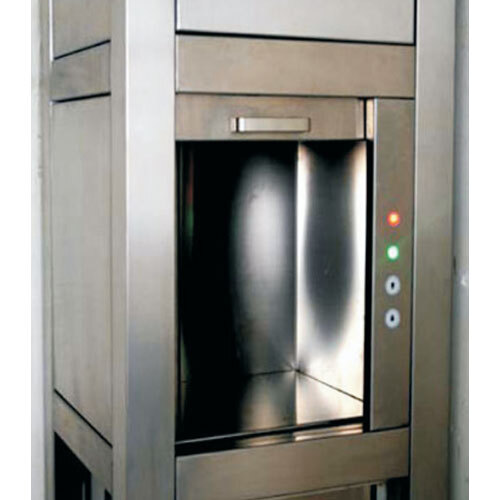

• Capacity
• 100 kg, 200 kg, 250 kg, 300 kg (customizable)

• Car Dimension
• Customized as per requirement (typical: 500x500x800 mm)

• Control Device
• Other, Microprocessor based control panel with call & send push buttons

• Door Opening Size
• Customized as per shaft and car dimension

• Drive Type
• Other, Traction / Drum / Hydraulic

• Hoist Way Size
• Customized as per site specification

• Inclination
• Vertical

• Load Capacity
• 100 - 300 kg

• Machine Room Size
• Compact / Not Always Required

• Material
• other Sheet, Stainless Steel / MS Powder Coated

• Max. Lifting Height
• Up to 30 meters

• Max. Lifting Weight
• 300 kg

• Mechanism Type
• Other, Electric/Traction or Hydraulic

• Noise Level
• Below 60 dB

• Overhead Height
• 1800 mm minimum

• Pit Depth
• 600 mm minimum

• Power Supply
• Single Phase / Three Phase

• Safety Device
• Other, Electro-mechanical interlock, Emergency Stop, Overload Protection

• Speed
• 0.3 m/s

• Type
• Other, Dumbwaiter (Food Lift / Service Lift)

• Usage
• Restaurants, Hotels, Hospitals, Offices, Libraries, Banks, Residential Buildings for food, documents, etc., Other

• Voltage
• 220V / 380V (customized as required)

• Working Temperature
• -10C to +55C
